GRAIN SAMPLING PROBE

Name: GRAIN SAMPLING PROBE
Brand: GREEN AGRITECH EQUIPMENT
Price: 4999.0 INR
Availability: InStock

Price 4999.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

GRAIN SAMPLING PROBE Specification

Automation Grade
Manual

Features
Multiple types - bag triers, single tube, double tube, triple zone, various materials

Response Time
Immediate, manual

Usage
For Laboratory and Industrial Use

Measuring Range
O.D. 0.5-1.538 inch (model-specific)

Hardness
Material dependent (Nickel Plated Steel, Brass, Stainless Steel)

Specimen Size
Loose seeds and granular materials

Test Range
Applicable for all granular and seed samples

Humidity
Ambient

Application
Sampling seed, grain and other granular materials in bags, trucks, bins, hoppers, rail cars, and large trucks

Product Type
SAMPLING PROBE

Power Supply
Not required (manual)

Temperature
Ambient

Number of Specimens
Depends on probe partition (1-10 openings/partitions by model)

Material
Mild Steel

Accuracy
Depends on operator, manual

Max Height
Longest probe: 78 inches

Mounting Type
Handheld, portable

Capacity
As per tube size

Machine Weight
1-5 Kilograms (kg)

Test Speed
Manual operation

Test Width
Varies; see Length/Inch: 12-78 (specific per model)

Test Stroke
Full length of the probe

Control Mode
Manual

Special Designs
Triple zone sampler, double tube spears, single tube triers

Model Options
GA-23-12, GA-23-14, GA-23-16, GA-23-18, GA-23-20, GA-23-22, GA-23-24, GA-23-65, GA-23-65A, GA-23-65B, GA-23-30, GA-23-39, GA-23-47, GA-23-55, GA-23-78, GA-23-8

Cleaning and Hygiene
Smooth inner tube for easy sample transfer and cleaning

Equipment Type
Grain Sampling Probe

Construction
Made of steel, nickel plated, brass, or stainless steel with chrome plated or anodized aluminium T-handle

Length Range
12 inches to 78 inches

Outer Diameter Range
0.5 inch (12.7 mm) to 1.538 inch (39 mm)

Material Options
Nickel Plated Steel, Brass, Stainless Steel

Industries Served
Food, pharmaceutical, fertilizer, bulk material handling

Advantages
Sufficient length for deep sampling, robust construction for heavy-duty use, ease of use and sample retrieval

Partitions/Openings
Single, 3-zone, up to 10 partitions (model-dependent)

GRAIN SAMPLING PROBE Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID), Cash Advance (CA)

Supply Ability
10 Pieces Per Day

Delivery Time
6 Days

Main Export Market(s)
Australia, North America, Eastern Europe, Middle East, Africa, Central America, South America, Western Europe, Asia

Main Domestic Market
All India

GRAIN SAMPLING PROBE About

SEED SAMPLING PROBE

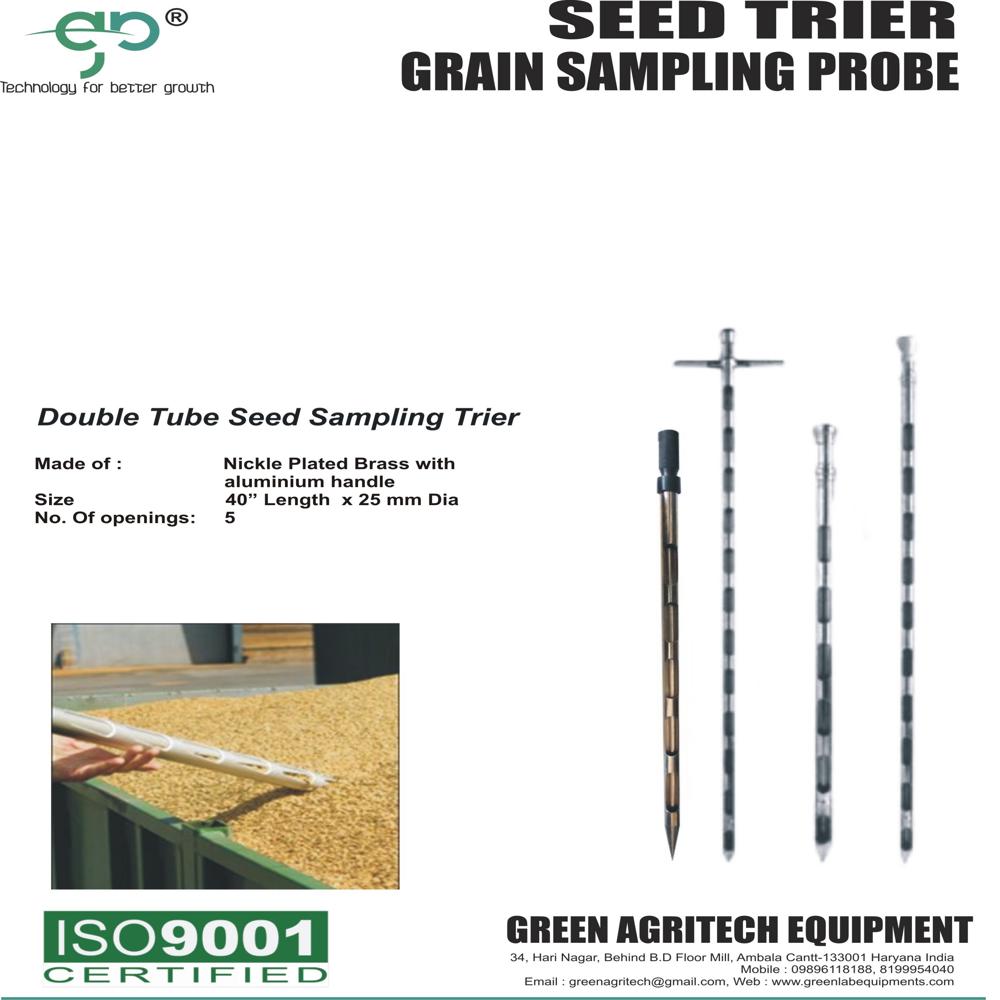

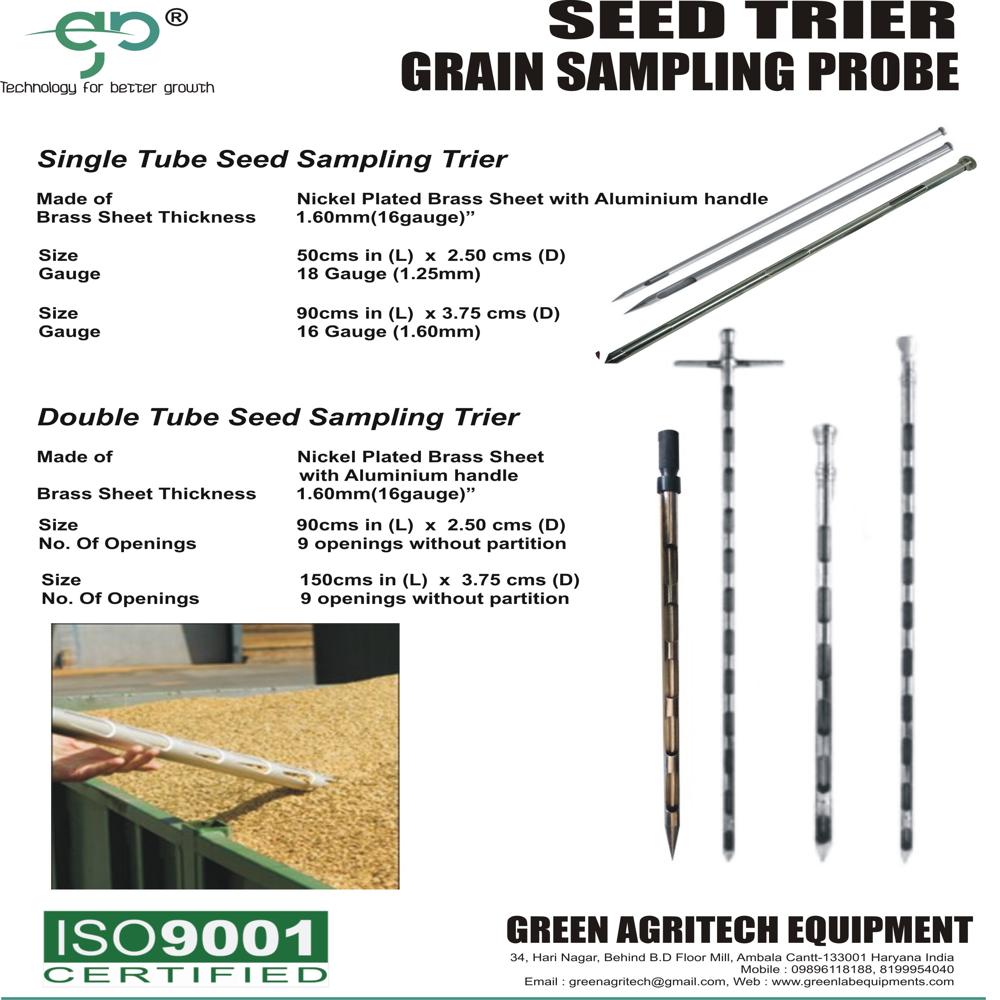

Double Tube Samplers from bulk lots are taken with a double tube compartment bulk grain probe. Made of Nickle plated brass sheet with aluminium handle. Inner tube is rotated to open/close sampling holes. Probes with partitions between holes have closed end handle.

Model : GA-23-30 Length 30", Outer Dia -25 mm, Openings 4

Model : GA-23-35 Length 35", Outer Dia : 25 mm, Openings 5

Model : GA-23-47 Length 47" Outer Dia : 25 mm, Openings : 5

Model : GA-23-60 Length 60" Outer Dia : 33mm, Openings: 8

Model : GA-23-78 Length 78" Outer Dia: 38 mm, Openings : 10

Versatile Model Options and Construction

Choose from a range of models and materials that meet your specific sampling requirements. The probes are available in nickel plated steel, brass, and stainless steel, each offering unique advantages in terms of durability and compatibility. Multiple lengths and partition options ensure adaptability for sampling small bags or deep hoppers alike.

Reliable and Accurate Sampling

Designed for handheld, manual operation, the Grain Sampling Probe delivers immediate results. Its deep-reaching design allows effective sampling in bags, bulk bins, railcars, and trucks. Smooth inner surfaces aid both sample transfer and easy cleaning, maintaining high hygiene standards for food and pharmaceutical applications.

Applications Across Industries

These probes serve diverse industries, including food, pharmaceuticals, fertilizer, and bulk materials. The various types-such as single tube triers, double tube spears, and triple zone samplers-make them suitable for sampling seeds, grains, and granules from bags or bulk storage in various environments, ensuring accurate representation for laboratory and industrial analyses.

FAQ's of GRAIN SAMPLING PROBE:

Q: How do you use the Grain Sampling Probe to collect samples?

A: To use the Grain Sampling Probe, insert it manually into the bulk material (e.g., grain bags, bins, or trucks) to the desired depth. Rotate the probe if needed, allow grains to fill each partition or zone, then withdraw the probe and release the contents for analysis. The manual operation ensures control over the sampling process.

Q: What are the benefits of using a probe with multiple partitions or zones?

A: Probes with multiple partitions or zones, such as triple zone samplers, allow collection of samples from different layers of the bulk material in a single insertion. This helps to obtain a more representative sample profile, ensuring accurate analysis of the entire batch.

Q: Which industries use the Grain Sampling Probe and for what applications?

A: The Grain Sampling Probe is utilized in food, pharmaceutical, fertilizer, and bulk material handling sectors, primarily for sampling seeds, grains, or granules in laboratory and industrial settings. Typical applications include quality assurance, compositional analysis, and contamination monitoring.

Q: When is it necessary to use specialized probes like single tube triers or double tube spears?

A: Specialized probes such as single tube triers or double tube spears are recommended when sampling fine materials, very small batch sizes, or requiring quick, targeted sampling of specific bulk layers. They provide flexibility to match sample size and material flow with your analysis needs.

Q: How do you maintain and clean the Grain Sampling Probe?

A: After each use, remove residual materials from the probe's smooth inner channel. For materials prone to sticking, use appropriate brushes or cleaning agents compatible with the probe's construction material (nickel-plated steel, brass, or stainless steel). Regular cleaning ensures hygienic, contamination-free sampling.

Q: Where can these probes be used, and what granule sizes are suitable?

A: Grain Sampling Probes are suitable for use in bags, hoppers, bins, railcars, and large trucks, accommodating various environments. They are appropriate for sampling loose seeds, grains, and similar granules within the probe's measuring range (outer diameter 0.5 to 1.538 inches, per model).

Q: What advantages does manual operation offer for grain sampling?

A: Manual operation allows immediate control over sampling depth, speed, and technique, adapting to different material types and container sizes. It requires no power supply, making the probe portable for on-site use in varied locations while delivering reliable, real-time results.
